Overview of Power Jal Pro Stream 250-Commercial Reverse Osmosis Plant:

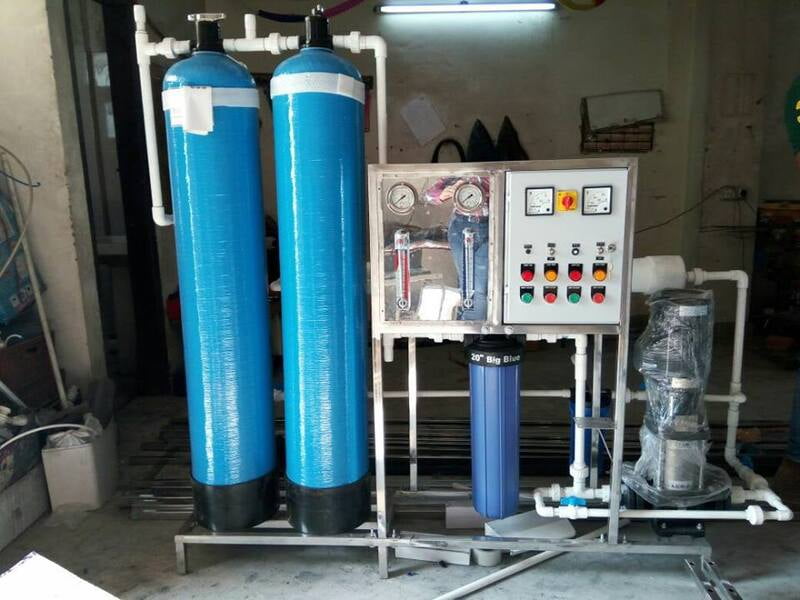

The Power Jal Pro Stream 250 is a skid-mounted, fully automatic Commercial Reverse Osmosis Plant designed to deliver a consistent, high-volume supply of purified water. With an impressive output of 250 litres per hour, this system is the ideal solution for small to medium-sized industries, hotels, hospitals, and institutions in Delhi NCR that require reliable access to high-purity water for their processes and consumption. The Pro Stream 250 from Power Jal is engineered to be a robust and efficient workhorse, capable of treating high TDS water from municipal or borewell sources and transforming it into clean, usable water.

At its heart, the Pro Stream 250 utilizes a sophisticated multi-stage Reverse Osmosis process. This includes essential pre-treatment stages to protect the core components, a high-pressure pump to drive the process, and high-rejection RO membranes that effectively remove up to 99% of dissolved impurities. The entire system is built on a rigid stainless steel frame for durability and easy maintenance. For any business looking to move away from the unpredictability and high cost of water tankers, the Power JalCommercial Reverse Osmosis Plant is the definitive investment in self-sufficiency and quality assurance.

Key Features of Power Jal Pro Stream 250-Commercial Reverse Osmosis Plant:

• Model Name: The high-performance Power Jal Pro Stream 250.

• High Purification Capacity: Delivers a consistent output of 250 Litres Per Hour (LPH), making it suitable for significant daily water consumption needs.

• Advanced Reverse Osmosis Technology: The core of this Commercial Reverse Osmosis Plant is its high-rejection Thin Film Composite (TFC) RO membranes that effectively remove dissolved solids, chemicals, and salts.

• Multi-Stage Pre-Treatment: Includes essential pre-treatment units, typically a sand filter and an activated carbon filter, to remove suspended solids, chlorine, and organic matter, protecting the RO membranes.

• Robust Stainless Steel Skid: The entire plant is mounted on a durable, corrosion-proof stainless steel frame, ensuring structural integrity and a long operational life.

• High-Pressure Pump: Equipped with a high-performance, vertical multi-stage pump that provides the necessary pressure for the RO process efficiently and reliably.

• Automated Control Panel: Features a user-friendly microprocessor-based control panel for fully automatic operation, including auto-start/stop, and safety cut-offs for low/high pressure.

• Industrial-Grade Components: Utilizes high-quality components, including FRP vessels for filters, UPVC piping, and reliable instrumentation like pressure gauges and flow meters.

• Compact and Modular Design: While powerful, the Power Jal Pro Stream 250 is designed to have an optimized footprint, making installation easier in limited industrial spaces.

• Customizable Configuration: Can be customized with additional components like anti-scalant dosing systems or post-treatment units based on the specific input water quality in Delhi NCR.

Benefits of Power Jal Pro Stream 250-Commercial Reverse Osmosis Plant:

• Operational Self-Sufficiency: The Power Jal Pro Stream 250 frees your business from its reliance on external water tankers, giving you complete control over your water supply.

• Massive Cost Savings: Drastically reduces the high operational expenditure associated with purchasing water tankers, offering a quick return on investment.

• Consistent Water Quality: Provides water of a consistent, high purity level, which is crucial for processes in industries like food and beverage, pharmaceuticals, and electronics.

• Protects Expensive Equipment: Using purified water from this Commercial Reverse Osmosis Plant prevents scaling and corrosion in boilers, coolers, and other sensitive machinery, extending their life.

• Improved Product Quality: For businesses where water is an ingredient, using pure RO water ensures better taste, consistency, and quality in the final product.

• Enhanced Employee Health: Provides a safe and reliable source of drinking water for your workforce, reducing health risks and improving morale.

• Durable and Low Maintenance: The high-quality construction and automated features of the Pro Stream 250 ensure it runs reliably with scheduled preventive maintenance.

• Environmentally Friendly: Reduces the carbon footprint associated with the transportation of water via tankers.

• Purifies water effectively: Removes sediment, chlorine, dissolved impurities, and more.

• High purification capacity: Delivers 250 liters of purified water per hour.

• Suitable for high TDS water: Ideal for areas with hard water and high mineral content.

• Customizable options: Tailor the system with pre-filters and post-carbon filters to meet your specific needs.

• Durable and long-lasting: Built with high-quality components for reliable performance.

• Easy to maintain: Simple filter replacement process.

Usage of Power Jal Pro Stream 250-Commercial Reverse Osmosis Plant:

• Small to Medium Manufacturing Units: The Power Jal Pro Stream 250 is ideal for factories in the industrial belts of Delhi NCR that require treated water for processes, washing, or boiler feed.

• Hotels and Restaurants: A perfect Commercial Reverse Osmosis Plant for ensuring high-quality water for cooking, beverage making, and dishwashing in the competitive hospitality sector.

• Hospitals and Healthcare Facilities: Provides a reliable source of purified water for laundries, canteens, and other non-critical medical applications.

• Educational Institutions & Hostels: Can cater to the entire drinking and cooking water needs of a school or hostel campus with hundreds of students.

• Packaged Drinking Water Businesses: Can serve as the core purification unit for small-scale packaged drinking water or bottling operations.

• Commercial Buildings & Malls: Provides treated water for HVAC systems (cooling towers) and for use in food courts and restrooms.

Product Specification:

1. RAW WATER PUMP

Purpose To feed the Dual Media Filter at pressure more than 2.0 bar, which is min. operating pressure for filter.

Specifications Vessel:

• MOC : CI

• Type : Horizontal Centrifugal

• Power Required: 0.5 HP

• Electrical : 230 V, Single phase , 50 Hz

• Make : CRI, Lubi or Equivalent

• Quantity : 1 No.

2. DUAL MEDIA FILTER

Purpose To remove the total suspended solids, dirt , iron and reduce silt density index which can foul the membranes

Specifications Vessel:

• Make: Seaflo or Pentair

• Material of Construction: FRP

• Diameter: 10”

• Height : 54”

• Testing Pressure : 10 kg/cm 2

• Opening : Top

• Quantity : 1 No.

• Valve : ¾” Imported

3. ACTIVTED CARBON

FILTER Purpose To remove the total color, smell, odour, from the water.

Specifications Vessel:

• Make: Sealflo or Pentair

• Material of Construction: FRP

• Diameter: 10”

• Height: 54”

• Testing Pressure: 10 kg/cm 2

• Opening: Top only

• Quantity: 1 No.

4. DOSING SYSTEM

Purpose To dose anti-scalent chemical to protect the scaling formation on RO membranes.

Specifications Vessel:

• MOC: PP

• Capacity: 6 LPH

• Pressure: 7 Bar

• Qty.: 1 No.

• Make: IDOSE, Edose or Equivalent

5. MICRTERON FILTER

Purpose To remove the fine particles up to 05 microns and reduce silt density index levels to acceptable level

Specifications Cartridge Filter & Housing:

• MOC of Housing: PP

• Length : 20”

• Diameter: 6”

• Quantity : 1 No.

• Cartridge :

• Make : Seaflo or Sealux

• Cartridge MOC : Polypropylene

• Length: 20”

• Diameter : 4.5

• Quantity: 1 no.

• Micron rating: 05 micron

6. HIGH PRESSURE PUMP

Purpose To feed the Reverse Osmosis Membrane at pressure more than the osmotic pressure taking into consideration flux rate, flow and recovery.

Specifications Vessel:

• MOC : Stainless Steel

• Type : Vertical Multistage

• Power Required: 1.5 HP

• Electrical: 230 V , Single phase, 50 hz

• Make: CRI / LUBI

7. RO MEMBRANE

Purpose To remove the major part of TDS up to 98% by Reverse Osmosis Membranes arranged and designed to give adequate flow and recovery.

Specifications Vessel:

• Type: Spiral Wounded

• Diameter of Membrane: 4.0 inch

• Length of Membranes: 1 Mt.

• No. of Membranes : 1

• Salt Rejection per Membrane: 98-99%

• Make of Membranes: 4040 (Dow) Filmtec

• System Recovery: 50 %

8. RO PRESSURE TUBE

Purpose To pack Reverse Osmosis Membranes and operate at high pressure up to 300 psi

Specifications Vessel:

• MOC : FRP

• Diameter of Pressure Vessel : 4.2 inch

• Length of Pressure Vessel : 1 m

• No. Pressure Vessels: 1

• No. of Membrane per Vessel: 1

• Make: Seaflo, Roh Or Equivalent

• Position: Horizontal, Series

• Arrays: 1 No.

9. ELECTRICAL PANAL

Purpose A control panel is provided as a safety measure for the pumps & other electrical items.

Specifications: INSTRUMENTATION Purpose

• Flow Meter : To measure the online flow of water

• Low Pressure Switch : To protect RO pump from dry running

• High Pressure Switch : To protect RO pump from back pressure

• Pressure Gauges : For calculate ^P for each unit in RO system

Specifications Rota Meter :

• Quantity : 2 Nos.( permeate & reject line)

• Range : 1000 ltr per hour

• Pressure Switch :Quantity : 2 No.(Low & High)

• Range : 0-450 psi

• Pressure Gauges Quantity : 4 No.

• Range : 7 – 21 bar

• Dial Size : 3 inches Seaflo

10. PLUMBING & FITTINGS

• Valves, pipelines RO module is in upvc

• The System will be on common SS base frame

Free Installation Service Available in:

• Gurugram and DELHI NCR REGION

• For Installation call us on +91-9999696843

• For complaints : 9999696843

• Customer Care number : 9999696843

Onsite warranty & Service Available in:

• Availability : On Order all over India

• Stock Availability : on order

Terms and Conditions:

• Warranty Terms

• Shipping terms

• Refund terms

• Replacement Terms

• Returnable

Frequently Asked Questions:

Q: What is the output capacity of the Power Jal Pro Stream 250?

A: It has a rated output capacity of 250 litres of purified water per hour.

Q: Can this plant treat borewell water with very high TDS in Gurgaon?

A: Yes, this Commercial Reverse Osmosis Plant is specifically designed to treat high TDS water from sources like borewells, making it ideal for the water conditions in Gurgaon.

Q: What are the space and installation requirements for the Pro Stream 250?

A: It requires a dedicated, level space with access to a raw water inlet, a drain outlet, and a three-phase power supply. The skid-mounted design simplifies installation.

Q: What is the water recovery rate of this RO plant?

A: Typically, a plant of this nature can have a recovery rate of 50-60%, meaning for every 100 litres of input water, you get 50-60 litres of pure water. This can be improved with advanced configurations.

Q: What kind of maintenance does it require?

A: Routine maintenance includes monitoring pressure, checking for leaks, and backwashing filters. Periodic maintenance involves chemical cleaning of the membranes and replacing pre-filter cartridges.

Q: Is the operation fully automatic?

A: Yes, the Power Jal Pro Stream 250 comes with a control panel for fully automatic operation, including safety features like a low-pressure switch.

Q: How long do the RO membranes last?

A: With proper pre-treatment and regular maintenance, the RO membranes can last for 3-6 months.

Q: Can we use the water for drinking purposes?

A: Yes, the water produced by this Reverse Osmosis system is of high purity and is safe for drinking. A post-treatment mineralizer can be added to enhance taste.

Q: Does Power Jal provide installation and service support in Delhi NCR?

A: Yes, as a specialized provider, Power Jal and its partners offer complete installation, commissioning, and after-sales service support across the Delhi NCR region.

Q: is this a good investment compared to buying water tankers?

A: Absolutely. While the initial investment is higher, the recurring cost of water tankers is enormous. A Commercial Reverse Osmosis Plant like the Pro Stream 250 typically pays for itself within 12-18 months and provides massive savings thereafter.
