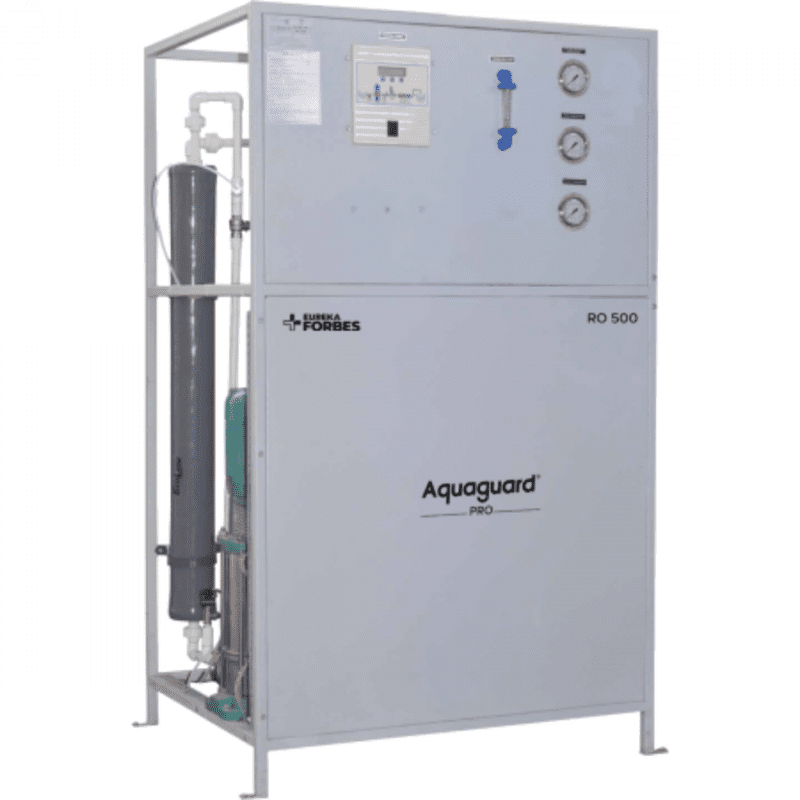

Aqua guard RO Plant 500 LPH with TFC Membrane
Aqua Guard RO Plant 500 LPH with TFC Membrane:
Key features of Aqua guard Ro Plant 500 LPH with TFC Membrane:
- Completely assembled / pre-piped / pre-wired
- Auto start / stop based on water level in the tank
- MCB for plant protection
- Raw water pump integrated with plant
- Microprocessor based control panel for ease of operation and inbuilt process logic
- Blending cartridge provision to adjust taste / TDS and followed by ultra violet disinfection for total safety
- Inbuilt protection to high pressure pump by way of low pressure switch / high pressure switch
- Integrated pre-treatment module for removal of suspended solids along with pressure gauges
- Robust high pressure pump in SS 304 construction
- Automatic backwashing of filters available as premium range
- Online rota-meter for measuring permeate flow
- Membranes from GE / Hydranautics
- PU coated MS skid & plated hardware
- Glycerin filled SS pressure gauges for durability

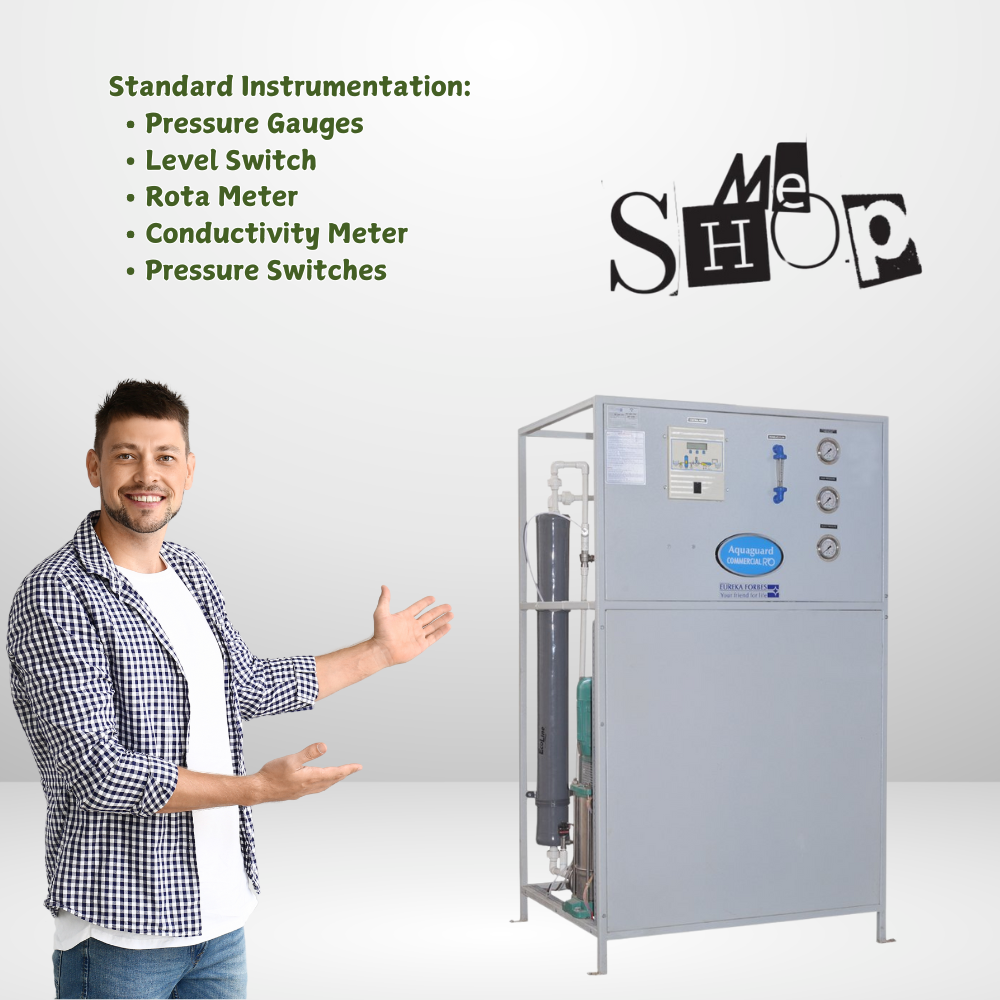

Standard Instrumentation:
- Pressure Gauges
- Level Switch
- Rota Meter
- Conductivity Meter
- Pressure Switches

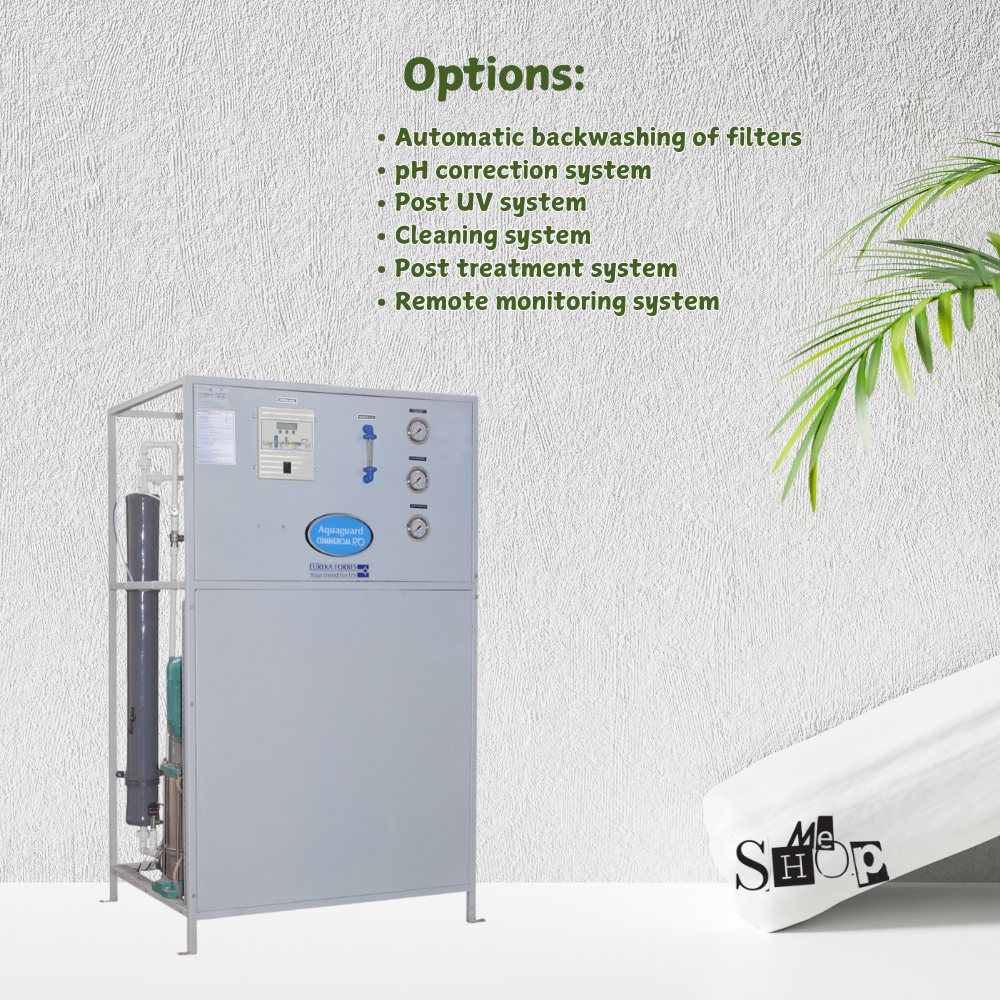

Options:
- Automatic backwashing of filters
- pH correction system
- Post UV system
- Cleaning system
- Post treatment system
- Remote monitoring system

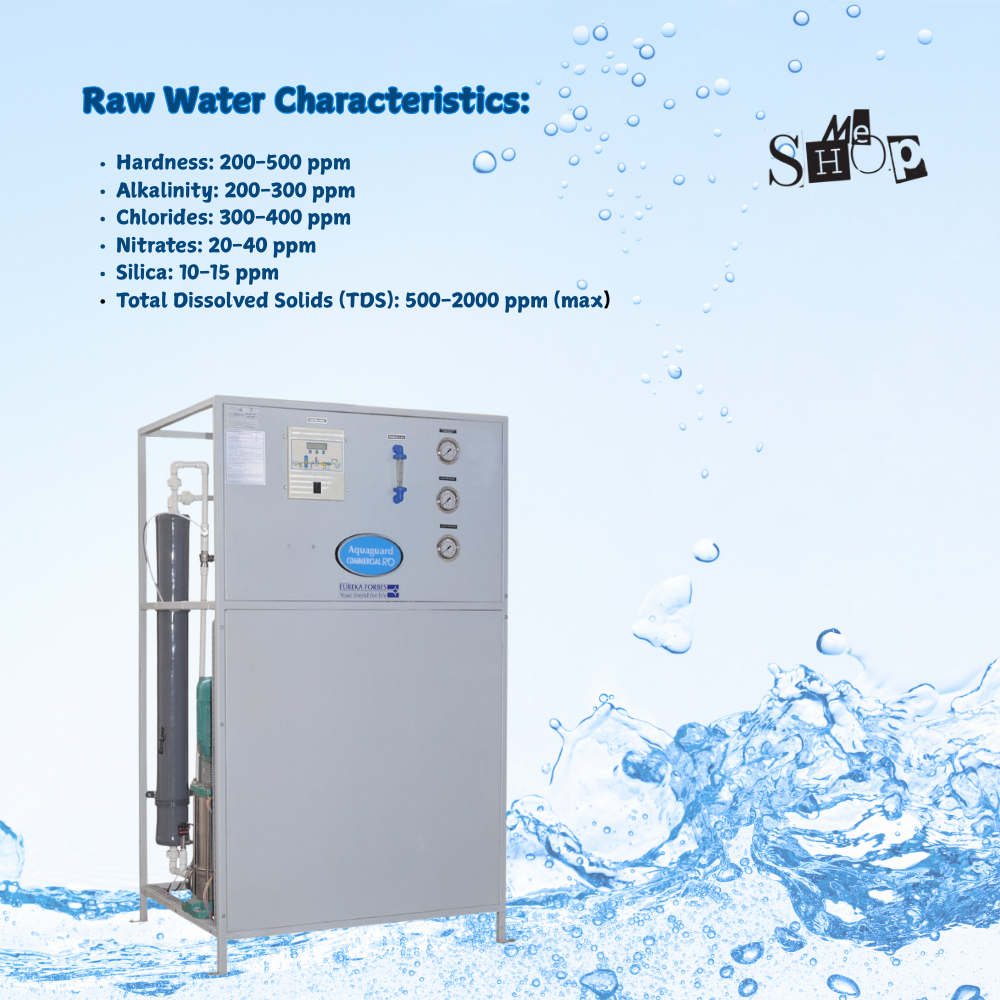

Raw Water Characteristics:
- Hardness: 200-500 ppm
- Alkalinity: 200-300 ppm
- Chlorides: 300-400 ppm
- Nitrates: 20-40 ppm
- Silica: 10-15 ppm
- Total Dissolved Solids (TDS): 500-2000 ppm (max)
Overview of Aqua guard Ro Plant 500 LPH with TFC Membrane:
The Aquaguard RO Plant 500 LPH with TFC Membrane is a powerful and reliable solution engineered for large-scale water purification in commercial and industrial settings. This robust system is capable of purifying an impressive 500 liters of water per hour, making it an indispensable asset for establishments with high water consumption demands. At the heart of its exceptional performance lies the advanced Reverse Osmosis (RO) technology, specifically utilizing a high-efficiency Thin Film Composite (TFC) membrane. This cutting-edge membrane is renowned for its superior salt rejection capabilities and durability, effectively eliminating dissolved impurities, heavy metals, pesticides, and other contaminants, ensuring the water produced is microbiologically safe and crystal clear.
Beyond its core RO purification, the plant typically incorporates multi-stage pre-filtration to protect the membrane and enhance its lifespan, along with a post-carbon filter to improve taste and odor. Its sturdy construction, often featuring a stainless steel skid, ensures longevity and resistance to corrosion, even in demanding environments. The Aquaguard 500 LPH RO Plant is an ideal choice for businesses, institutions, and industries that require a continuous supply of high-quality purified water for drinking, processing, or other operational needs, offering both economic benefits and peace of mind regarding water purity.
Key features of Aqua guard Ro Plant 500 LPH with TFC Membrane:
General Features of Ro plant 500 LPH:
- Completely assembled/pre-piped/pre-wired: This means the RO plant comes as a ready-to-install unit with all the necessary components and piping pre-assembled, simplifying installation.
- Microprocessor-based control panel: A sophisticated control panel with a microprocessor allows for easy operation, monitoring, and automated control of the RO plant's functions.
- Auto Start/stop based on water level in the tank: The system automatically starts and stops based on the water level in the storage tank, optimizing energy consumption and preventing overflow.
- MCB for plant protection: A miniature circuit breaker (MCB) provides electrical protection to the RO plant, preventing damage from overloads or short circuits.
- Raw water pump integrated with plant: The pump responsible for drawing raw water into the system is integrated into the unit, streamlining the setup.
- Robust high-pressure pump in SS304 construction: A durable high-pressure pump made of stainless steel 304 is used to pressurize the water for the RO process, ensuring reliable operation.
- Online Rota-meter for measuring permeate flow: A rotameter is included to measure the flow rate of purified water (permeate) produced by the RO system.
- PU coated MS skid & Plated hardware: The RO plant is mounted on a sturdy, PU-coated mild steel skid for protection and stability. Plated hardware enhances corrosion resistance.
- 100% Pure water: This highlights the system's ability to produce highly purified water suitable for various applications.
Standard Instrumentation of Ro Plant 500 LPH:
- Pressure gauges: Gauges to monitor pressure at various stages of the RO process.
- Rotameter: As mentioned earlier, for measuring permeate flow.
- Pressure switches: Switches that activate or deactivate pumps or valves based on pressure changes.
- Level switch: A switch that detects the water level in the storage tank to control the auto start/stop function.
- Conductivity meter: Measures the electrical conductivity of the water, indicating the level of dissolved salts and impurities.
Optional Features of Ro Plant 500 LPH:
- Automatic backwashing of filters: This automated feature cleans the filters, improving their efficiency and extending their lifespan.
- Post UV system: An additional UV disinfection stage after the RO process to further ensure water purity.
- Post-treatment system: May include additional filtration or purification steps to meet specific water quality requirements.
- pH correction system: Adjusts the pH of the purified water to the desired level.
- Cleaning system: Automated or manual cleaning systems for the RO membranes and other components.
- Remote Monitoring Station: Allows for remote monitoring and control of the RO plant's operation.
Benefits of using Aqua guard Ro Plant 500 LPH with TFC Membrane:
- High Purification Capacity: With a 500 LPH (litres per hour) capacity, this RO plant can meet the high water demands of commercial and industrial settings like schools, hotels, hospitals, and manufacturing plants.
- Advanced TFC Membrane Technology: The Thin-Film Composite (TFC) membrane provides a high rejection rate of dissolved salts, impurities, and contaminants, ensuring superior water purity and quality.
- Energy Efficiency: TFC membranes are known for their energy efficiency, helping to reduce operational costs compared to some other membrane types.
- Durable Construction: The use of SS304 stainless steel for the high-pressure pump and a PU-coated MS skid ensures durability and corrosion resistance, extending the lifespan of the RO plant.
- Ease of Operation: The microprocessor-based control panel with automated features like auto start/stop simplifies operation and monitoring.
- Comprehensive Monitoring and Control: The inclusion of pressure gauges, a rotameter, pressure switches, a level switch, and a conductivity meter allows for comprehensive monitoring and control of the RO process.
- Space-Saving Design: The pre-assembled, pre-piped, and pre-wired unit with an integrated raw water pump optimizes space utilization and simplifies installation.
Application of Aqua guard Ro Plant 500 LPH with TFC Membrane:
- Large Corporate Offices & IT Parks: Provides drinking water for a significant workforce.
- Educational Institutions: Universities, colleges, and large schools for student and staff hydration.
- Hospitals & Healthcare Facilities: Ensures pure water for drinking, minor medical uses, and staff.
- Hotels & Restaurants: For drinking water, ice production, and culinary applications.
- Manufacturing & Industrial Units: For process water, drinking water, and specific industrial needs.
- Food & Beverage Industry: For ingredient water or general sanitation.
- Community Centre's & Public Facilities: Provides clean drinking water for large gatherings.
- Malls & Shopping Complexes: For staff and visitor hydration.
Product Specification:
- Brand: Aqua guard
- Model: 500 RO Plant
- Dimension (LXWXH): 1000x800x1700 in mm
- Maximum Flow: 500
- Average Flow: 400
- Inlet TDS: 500-2000(Max.)
- Permeate TDS: <150
- Recovery: 30%
- Pressure Sand Capacity: 1200 LPH
- Activated Carbon Filter: 1200 LPH
- Antis-calant dosing Tank Capacity: 50 Liters
- Micron Cartridge Filter(PP): 5 Micron, 20" Long
- High Pressure Pump (HPP): 1200 LPH, 1.5 kw
- UV lamps: Yes
- RO membrane: 4"x40"
- No. of stages for filters: 7
- Power supply: 415V AC
- Phase: 3 Phase
- Frequency: 50 Hz
- No. of wire: 4 wires
- Body, Tank Material: SS304
- Net Weight: 310 kg
- Warranty: 12 months
- HSN code: 8421
- Tax rate: 18%
- Sold by: Me shop
- Seller Information: Me Shop, Plot No. 120, Sector 9, Gurugram, Haryana. 122001
- Manufactured By: Eureka Forbes Limited (Formerly Forbes Enviro Solutions Limited) Registered Office Address: B1/B2, 701, 7th Floor, Marathon Innova, off. Ganpatrao Kadam Marg, Lower Parel (West), Mumbai, Maharashtra – 400013
- Customer Care: 18602661177
- Country Origin: Made In India
Comparison with Other Models:
| Feature | Aqua Guard 500 LPH | Other Standard RO Plants |
|---|---|---|
| Capacity | 500 LPH | Typically lower, e.g., 100-200 LPH |
| Membrane | TFC Membrane | May use other types of membranes with lower efficiency |
| Automation | Microprocessor control with auto functions | May have limited automation features |
| Durability | Robust construction with high-quality materials | May have a shorter lifespan due to lower-grade materials |
| Application | Suitable for commercial and industrial use | Primarily designed for residential use |
Terms and Conditions:
Frequently Asked Question:
Q. What is the Aqua guard RO Plant 500 LPH with TFC Membrane?
A. This is a large, high-capacity water purification system designed for commercial or industrial use. It can filter up to 500 liters of water per hour, making it suitable for schools, offices, factories, and other large settings.
Q. What are the key features of the Aqua guard 500 LPH RO Plant?
A. Some key features include a microprocessor-based control panel, automatic start/stop, integrated raw water pump, high-pressure pump, and a durable design. It also uses a TFC membrane and has a 7-stage filtration process for thorough purification.
Q. Where can I buy the Aqua guard RO Plant 500 LPH with TFC Membrane?
A. This product is available for purchase online from ME SHOP INDIA. You can add it to your cart and proceed to checkout on their website.
Q. What is the price of the Aqua guard RO Plant 500 LPH with TFC Membrane?
A. The price is listed as ₹289,279.00 on the ME SHOP INDIA website.
Q. Does the Aqua guard RO Plant 500 LPH with TFC Membrane come with a warranty?
A. Yes, the product comes with a 12-month warranty.
Q. What is the filtration capacity of the Aqua guard RO Plant 500 LPH with TFC Membrane?
A. The Aqua guard RO Plant 500 LPH with TFC Membrane has a water purification capacity of 500 liters per hour.
Q. Can the Aqua guard RO Plant 500 LPH with TFC Membrane be used with a water cooler?
A. Yes, the Aqua guard RO Plant 500 LPH with TFC Membrane is suitable for use with a water cooler.
Q: What is the capacity of this RO plant?
A: This RO plant has a purification capacity of 500 liters per hour, making it suitable for commercial and industrial settings with high water demand.
Q: What is a TFC membrane, and why is it important?
A: TFC stands for Thin Film Composite. This type of membrane is known for its high efficiency in removing dissolved impurities, salts, and microorganisms from water, ensuring a higher level of purification compared to some other membrane types.
Q: What are the benefits of using this RO plant?
A: This RO plant offers several benefits, including: * Cost savings: Reduces the need for bottled water, leading to long-term cost efficiency. * Improved health: Provides safe and pure drinking water, free from harmful contaminants. * Increased productivity: Ensures a continuous supply of drinking water, minimizing downtime in workplaces. * Environmentally friendly: Reduces plastic waste associated with bottled water.
Q: What is the warranty on this product?
A: This Aqua Guard RO Plant comes with a 12-month warranty from Eureka Forbes Limited (Formerly Forbes Enviro Solutions Limited).
Q: What kind of maintenance does this RO plant require?
A: Like all RO plants, this model requires periodic maintenance, including filter replacements and membrane cleaning, to ensure optimal performance. Our team can provide detailed maintenance schedules and support.
Q: Can this RO plant be used in residential settings?
A: While primarily designed for commercial and industrial use, this RO plant can be used in large residential settings such as apartment complexes or housing societies with high water demand.
Q: How do I get a quote or more information about this product?
A: You can easily request a quote or get more information by contacting us through the "Contact Us" form on our website or by calling us at +91-9999696843. Our team is ready to assist you.
Storage tank
- Suitable for Water coolerYes
Filtration Process
- Pre Carbon FilterYes
- Water Purification stages7 filter stage
- Filter typeRo water purification with TDS adjuster
- Filter ProcessDual filteration
- Sediment filterYes
- Pre FilterYes
- Carbon FilterYes
- TDS Adjuster ValveYes
- Ultra FiltrationYes
- UV FilterYes
- Ro membrane FilterYes
- Tds AdjusterYes
- Tds Real time monitorOptional
- CTO filterYes
- Thread FilterYes
Electricals
- Over flow Switch (Auto Cut)Yes
Warranty Terms and Conditions
- Standard Warranty Period12 months
- Warranty TypeElectricals only
- Parts Covered Under warrantyElectricals
- Life time customer supportYes
- Extended WarrantyKindly connect customer care
- Parts covered under extended warrantyElectrical
Gst & Other details
- GST invoice availableYes
- HSN code8421
- Tax rate18%
- Country OriginIndia
- Manufactured ByAquaguard
