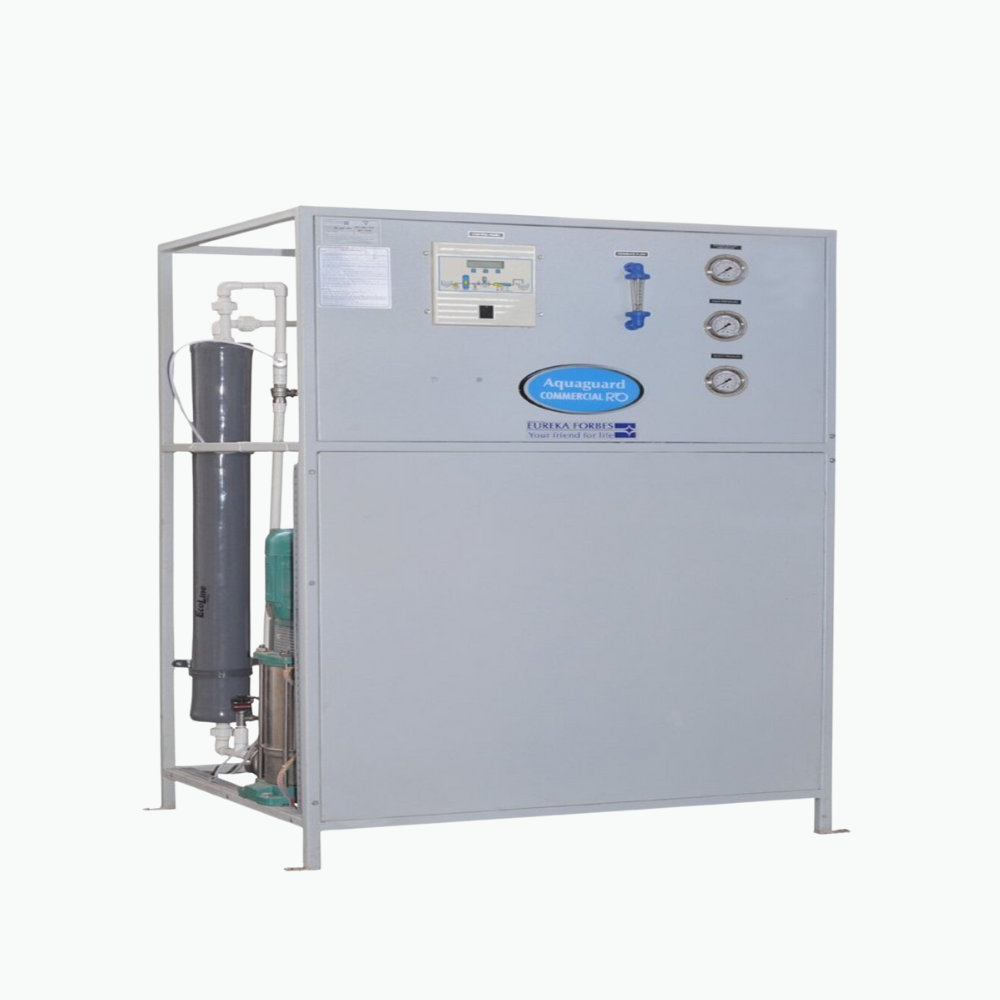

Aqua guard RO Plant 100 LPH with TFC Membrane
Aqua guard RO Plant 100 LPH with TFC Membrane:
Key features of Aqua guard Ro Plant 100 LPH with TFC Membrane:
- Completely assembled / pre-piped / pre-wired
- Auto start / stop based on water level in the tank
- MCB for plant protection
- Raw water pump integrated with plant
- Microprocessor based control panel for ease of operation and inbuilt process logic
- Blending cartridge provision to adjust taste / TDS and followed by ultra violet disinfection for total safety
- Inbuilt protection to high pressure pump by way of low pressure switch / high pressure switch
- Integrated pre-treatment module for removal of suspended solids along with pressure gauges
- Robust high pressure pump in SS 304 construction
- Automatic backwashing of filters available as premium range
- Online rota-meter for measuring permeate flow
- Membranes from GE / Hydranautics
- PU coated MS skid & plated hardware
- Glycerin filled SS pressure gauges for durability
Standard Instrumentation:
- Pressure Gauges
- Level Switch
- Rota Meter
- Conductivity Meter
- Pressure Switches

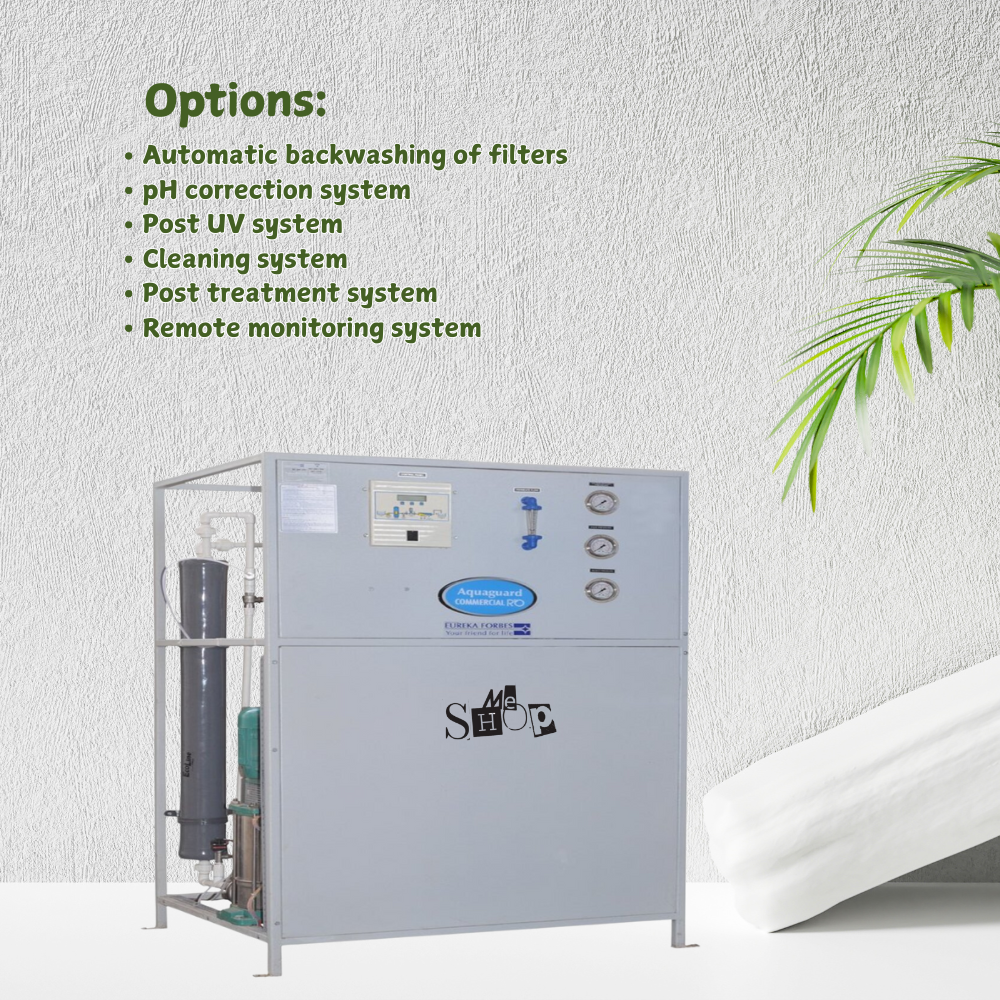

Options:
- Automatic backwashing of filters
- pH correction system
- Post UV system
- Cleaning system
- Post treatment system
- Remote monitoring system

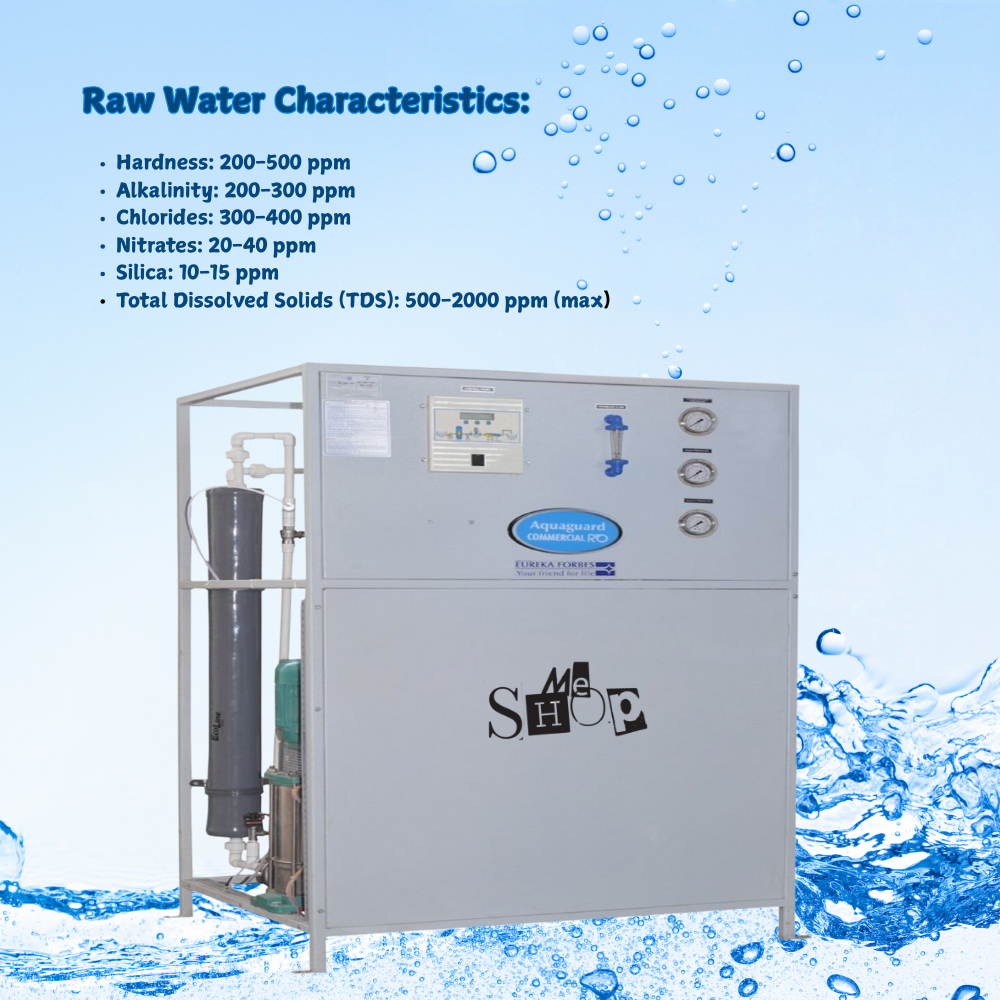

Raw Water Characteristics:
- Hardness: 200-500 ppm
- Alkalinity: 200-300 ppm
- Chlorides: 300-400 ppm
- Nitrates: 20-40 ppm
- Silica: 10-15 ppm
- Total Dissolved Solids (TDS): 500-2000 ppm (max)
Overview of Aqua guard Ro Plant 100 LPH with TFC Membrane:
The Aquaguard RO Plant 100 LPH with TFC Membrane is a powerful and reliable solution engineered for large-scale water purification in commercial and industrial settings. This robust system is capable of purifying an impressive 100 liters of water per hour, making it an indispensable asset for establishments with high water consumption demands. At the heart of its exceptional performance lies the advanced Reverse Osmosis (RO) technology, specifically utilizing a high-efficiency Thin Film Composite (TFC) membrane. This cutting-edge membrane is renowned for its superior salt rejection capabilities and durability, effectively eliminating dissolved impurities, heavy metals, pesticides, and other contaminants, ensuring the water produced is microbiologically safe and crystal clear.
Beyond its core RO purification, the plant typically incorporates multi-stage pre-filtration to protect the membrane and enhance its lifespan, along with a post-carbon filter to improve taste and odor. Its sturdy construction, often featuring a stainless steel skid, ensures longevity and resistance to corrosion, even in demanding environments. The Aquaguard 100 LPH RO Plant is an ideal choice for businesses, institutions, and industries that require a continuous supply of high-quality purified water for drinking, processing, or other operational needs, offering both economic benefits and peace of mind regarding water purity.
Key features of Aqua guard Ro Plant 100 LPH with TFC Membrane:
General Features of Ro plant 100 LPH:
- Completely assembled/pre-piped/pre-wired: This means the RO plant comes as a ready-to-install unit with all the necessary components and piping pre-assembled, simplifying installation.
- Microprocessor-based control panel: A sophisticated control panel with a microprocessor allows for easy operation, monitoring, and automated control of the RO plant's functions.
- Auto Start/stop based on water level in the tank: The system automatically starts and stops based on the water level in the storage tank, optimizing energy consumption and preventing overflow.
- MCB for plant protection: A miniature circuit breaker (MCB) provides electrical protection to the RO plant, preventing damage from overloads or short circuits.
- Raw water pump integrated with plant: The pump responsible for drawing raw water into the system is integrated into the unit, streamlining the setup.
- Robust high-pressure pump in SS304 construction: A durable high-pressure pump made of stainless steel 304 is used to pressurize the water for the RO process, ensuring reliable operation.
- Online Rota-meter for measuring permeate flow: A rotameter is included to measure the flow rate of purified water (permeate) produced by the RO system.
- PU coated MS skid & Plated hardware: The RO plant is mounted on a sturdy, PU-coated mild steel skid for protection and stability. Plated hardware enhances corrosion resistance.
- 100% Pure water: This highlights the system's ability to produce highly purified water suitable for various applications.
Standard Instrumentation of Ro Plant 100 LPH:
- Pressure gauges: Gauges to monitor pressure at various stages of the RO process.
- Rotameter: As mentioned earlier, for measuring permeate flow.
- Pressure switches: Switches that activate or deactivate pumps or valves based on pressure changes.
- Level switch: A switch that detects the water level in the storage tank to control the auto start/stop function.
- Conductivity meter: Measures the electrical conductivity of the water, indicating the level of dissolved salts and impurities.
Optional Features of Ro Plant 100 LPH:
- Automatic backwashing of filters: This automated feature cleans the filters, improving their efficiency and extending their lifespan.
- Post UV system: An additional UV disinfection stage after the RO process to further ensure water purity.
- Post-treatment system: May include additional filtration or purification steps to meet specific water quality requirements.
- pH correction system: Adjusts the pH of the purified water to the desired level.
- Cleaning system: Automated or manual cleaning systems for the RO membranes and other components.
- Remote Monitoring Station: Allows for remote monitoring and control of the RO plant's operation.
Benefits of using Aqua guard Ro Plant 100 LPH with TFC Membrane:
- High Purification Capacity: With a 100 LPH (litres per hour) capacity, this RO plant can meet the high water demands of commercial and industrial settings like schools, hotels, hospitals, and manufacturing plants.
- Advanced TFC Membrane Technology: The Thin-Film Composite (TFC) membrane provides a high rejection rate of dissolved salts, impurities, and contaminants, ensuring superior water purity and quality.
- Energy Efficiency: TFC membranes are known for their energy efficiency, helping to reduce operational costs compared to some other membrane types.
- Durable Construction: The use of SS304 stainless steel for the high-pressure pump and a PU-coated MS skid ensures durability and corrosion resistance, extending the lifespan of the RO plant.
- Ease of Operation: The microprocessor-based control panel with automated features like auto start/stop simplifies operation and monitoring.
- Comprehensive Monitoring and Control: The inclusion of pressure gauges, a rotameter, pressure switches, a level switch, and a conductivity meter allows for comprehensive monitoring and control of the RO process.
- Space-Saving Design: The pre-assembled, pre-piped, and pre-wired unit with an integrated raw water pump optimizes space utilization and simplifies installation.
Application of Aqua guard Ro Plant 100 LPH with TFC Membrane:
- Large Corporate Offices & IT Parks: Provides drinking water for a significant workforce.
- Educational Institutions: Universities, colleges, and large schools for student and staff hydration.
- Hospitals & Healthcare Facilities: Ensures pure water for drinking, minor medical uses, and staff.
- Hotels & Restaurants: For drinking water, ice production, and culinary applications.
- Manufacturing & Industrial Units: For process water, drinking water, and specific industrial needs.
- Food & Beverage Industry: For ingredient water or general sanitation.
- Community Centre's & Public Facilities: Provides clean drinking water for large gatherings.
- Malls & Shopping Complexes: For staff and visitor hydration.
Product Specification:
- Brand: Aqua guard
- Model: 100 RO Plant
- Dimension (LXWXH): 600x800x1640 in mm
- Maximum Flow: 100
- Average Flow: 100
- Inlet TDS: 500-2000(Max.)
- Permeate TDS: <150
- Recovery: 20%
- Antis-calant dosing Tank Capacity: 50 Liters
- Micron Cartridge Filter(PP): 5 Micron, 20" Long
- High Pressure Pump (HPP): 1000 LPH, 1.1 kw
- UV lamps: NO
- RO membrane: 4"x40"
- No. of stages for filters: 7
- Power supply: 415V AC
- Phase: 3 Phase
- Frequency: 50 Hz
- No. of wire: 4 wires
- Body, Tank Material: SS304
- Net Weight: 200 kg
- Warranty: 12 months
- HSN code: 8421
- Tax rate: 18%
- Sold by: Me shop
- Seller Information: Me Shop, Plot No. 120, Sector 9, Gurugram, Haryana. 122001
- Manufactured By: Eureka Forbes Limited (Formerly Forbes Enviro Solutions Limited) Registered Office Address: B1/B2, 701, 7th Floor, Marathon Innova, off. Ganpatrao Kadam Marg, Lower Parel (West), Mumbai, Maharashtra – 400013
- Customer Care: 18602661177
- Country Origin: Made In India
Terms and Conditions:
Frequently Asked Questions:
Q. What is the Aqua guard RO Plant 100 LPH with TFC Membrane?
A. This is a reverse osmosis (RO) water purification system designed for commercial use. It has a high capacity of 100 litres per hour, making it suitable for offices, schools, restaurants, and other businesses. The TFC (Thin Film Composite) membrane is a high-quality filtration component that removes a wide range of impurities from water.
Q. What are the benefits of using this RO plant?
- High-quality purified water: Removes dissolved salts, heavy metals, bacteria, viruses, and other impurities.
- Large capacity: Suitable for places with high water demand.
- Durable and long-lasting: Made with high-quality components.
- Easy to maintain: Simple design and readily available replacement filters.
- Improved taste and odor: Provides clean, fresh-tasting water.
Q. What types of impurities does it remove?
A. It effectively removes:
- Dissolved salts (TDS)
- Heavy metals (lead, arsenic, mercury)
- Bacteria and viruses
- Chlorine and other disinfectants
- Pesticides and herbicides
- Sediment and turbidity
Q. What is the maintenance required for this RO plant?
A. Regular maintenance includes:
- Periodic replacement of filters (frequency depends on usage and water quality).
- Cleaning of the membrane.
- Checking for leaks and other issues.
Q. What is the lifespan of the TFC membrane?
A. The membrane lifespan varies depending on water quality and usage. Typically, it lasts for 2-3 years.
Q. What is the warranty on this RO plant?
A. Warranty details vary by seller and manufacturer. Check with your supplier for specific warranty information.
Q. Can this RO plant be used for borewell water?
A. Yes, it can effectively purify borewell water. However, if the water has very high TDS or other contaminants, a pre-filtration system might be necessary.
Q. What is the power consumption of the RO plant?
A. Power consumption depends on the specific model and pump used. Refer to the product specifications for details.
Q. Is installation included in the price?
A. Installation charges may vary. Clarify with the seller whether installation is included or if there are additional costs.
Q. Where can I buy the Aqua guard RO Plant 100 LPH with TFC Membrane?
A. This RO plant can be purchased from authorized Aqua guard dealers, online retailers, or commercial water purification equipment suppliers.
Storage tank
- Internal Storage tank CapacityNA
- Suitable for Water coolerYes
- Storage tank materialNA
- Storage tank typeNo Storage Tank
Filtration Process
- Pre Carbon FilterYes
- Water Purification stages7 filter stage
- Filter typeRo water purification with TDS adjuster
- Filter ProcessSingle
- Sediment filterYes
- Pre FilterYes
- Carbon FilterYes
- TDS Adjuster ValveYes
- Ultra FiltrationYes
- UV FilterYes
- Ro membrane FilterYes
- Input Water Max TDS in PPM2000 PPM
- Output water Min. TDS Output500 ppm
- Filtration Capacity100 lph
- Tds AdjusterYes
- Tds Real time monitorYes
Warranty Terms and Conditions
- Standard Warranty Period12 months
- Warranty TypeElectricals only
- Parts Covered Under warrantyElectricals
- Life time customer supportYes
- Extended WarrantyKindly connect customer care
- Parts covered under extended warrantyElectrical
Gst & Other details
- GST invoice availableYes
- HSN code8421
- Tax rate18%
- Country OriginIndia
- Manufactured ByAquaguard
