KEY FEATURES:

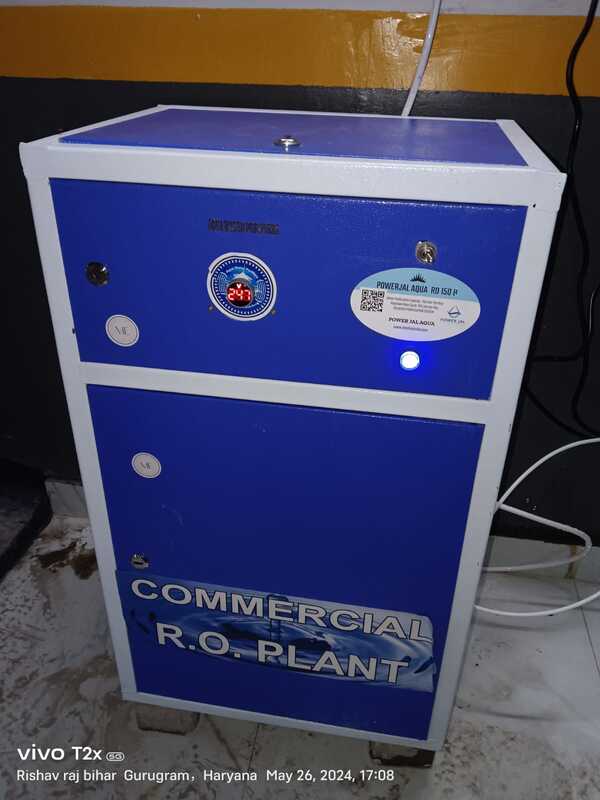

- High quality water purification system designed for commercial use in offices, schools, and public spaces
- Made in India with top-notch materials and advanced technology for superior performance
- Compatible with all types of water coolers and dispensers
- Removes harmful bacteria, viruses, and impurities from water, providing safe drinking water
- Easy installation process with the option to call or WhatsApp for assistance •
- Robust and durable design ensures long-lasting use
- HSN code 8421 for easy tax classification
- Trustworthy brand sold and marketed by ME SHOP in Gurugram, Haryana.
- Warranty: 12 months onsite for pumps. 6 months for electricals No warranty for Consumables & Filters
TECHNICAL SPECIFICATIONS :
1. Booster Pump 300 GPD :4 No.
2. Membrane 300GPD : 4 No.
3. SMPS 24 V DC : 4 No.
4. Solonoid Valve 220V AC :4 No.
5. Spun Candle 20” : 1 No.
6. Thread Candle 20” : 1 No.
7. C.T.O Carbon 20” : 1 No.
8. Stand Box Powder Coating :1 No.
9. Maximum daily duty cycle: 750 liter
10. Purification capacity: 150 LPH
11. Input water: Maximum up to 1000 PPM Out put water minimum up to : 50 PPM
(Warranty: 12 months onsite for pumps. 6 months for electricals No warranty for Consumables & Filters)
1. RAW WATER PUMP
Purpose To feed the Dual Media Filter at pressure more than 1.0 bar,
which is min. operating pressure for filter.
Specifications
a) MOC : CI
b) Type : Horizontal Centrifugal
c) Power Required: 24 V DC
d) Electrical : 230 V, Single phase , 50 hz
e) Make : Lexcru or Equivalent
f) Quantity : 4 No.
2. ACTIVATED CARBON FILTER
Purpose To remove the total color, smell, odor, from the water.
Specifications Bowl Set:
Specifications
a) Make: Kemy
b) Material of Construction: Plastic
c) Height: 20”
Quantity: 1 No
3.MICRTERON FILTER
Purpose To remove the fine particles up to 05 microns and\
reduce silt density index levels to acceptable level.
Specifications Cartridge Filter & Housing
Housing:
a) MOC of Housing: PP
b) Length : 20”
c) Diameter: 2.5”
d) Quantity : 2 No.
Cartridge :
e) Make : Kemflo
f) Cartridge MOC : Polypropylene
g) Length: 20”
h) Diameter : 2.5”
i) Quantity: 2 no.
j) Micron rating: 05 micron
4.RO MEMBRANE
Purpose To remove the major part of TDS upto 98% by Reverse
Osmosis Membranes arranged and designed to give
adequate flow and recovery.
Specifications
a) Type: Spiral Wounded
b) Diameter of Membrane: 2.0 inch
c) Length of Membranes: 10 “
d) No. of Membranes : 4
e) Salt Rejection per Membrane: 98-99%
f) Make of Membranes: Dow Filmtec,Wave Cyber,Flame,Vontron,CSM Etc.
5.PLUMBING & FITTINGS
a) Valves, pipelines RO module is in pvc
b) The System will be on common SS base frame
Free Installation Service available in:
Gurugram and Faridabad Only
Onsite warranty & Service available in:
Gurgaon Only
Stock Availability : on order
